Simplex

Overview

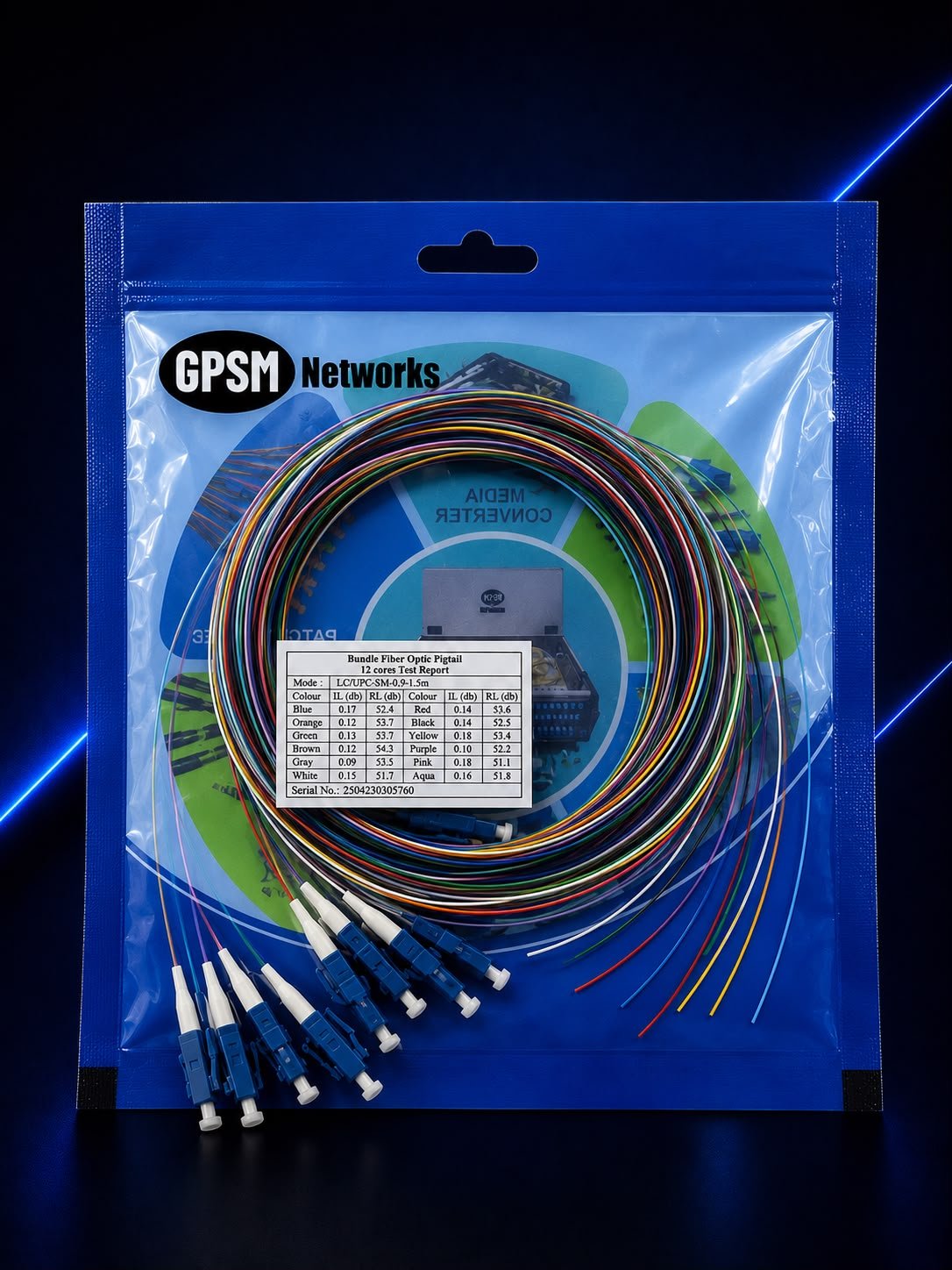

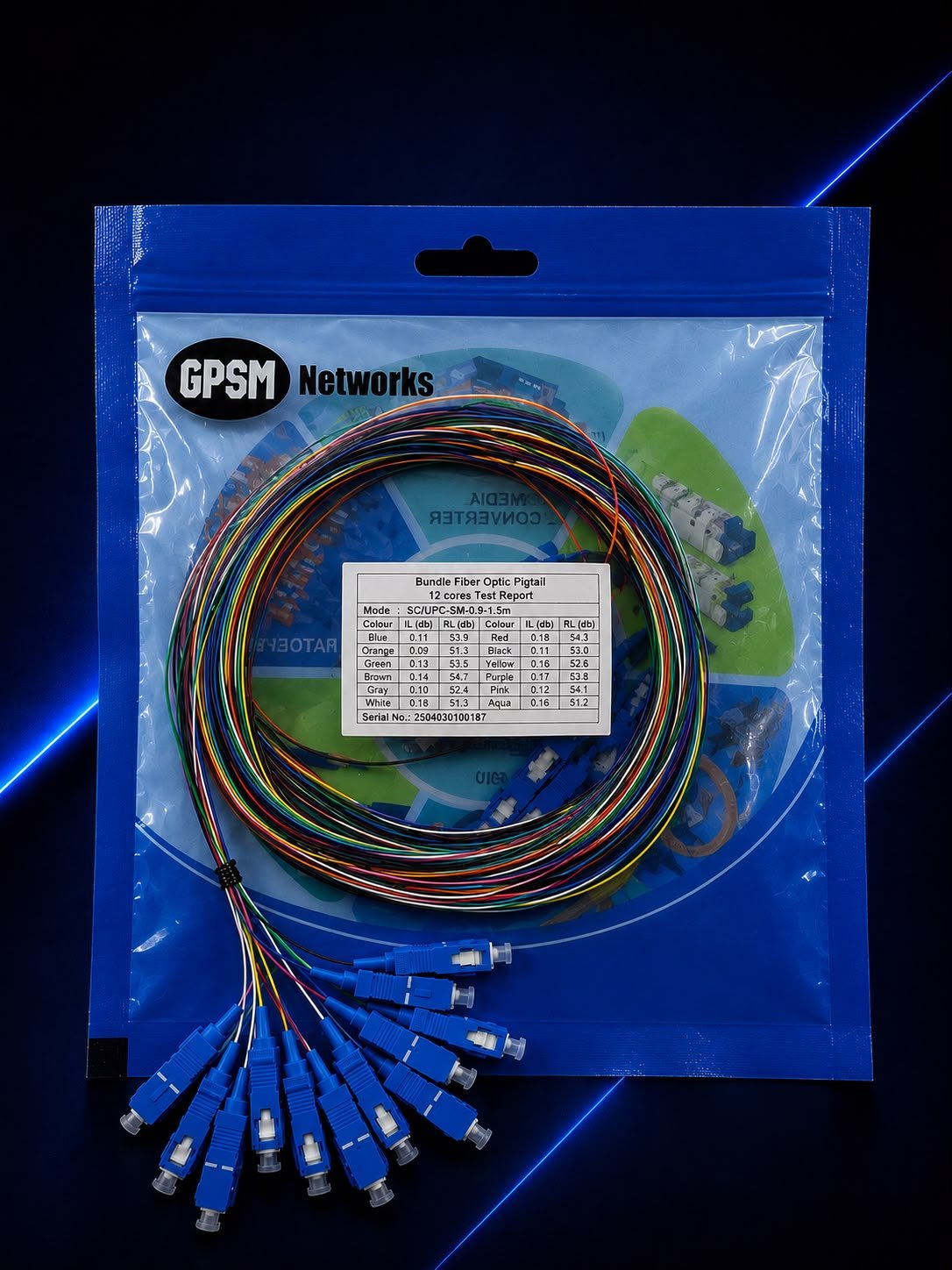

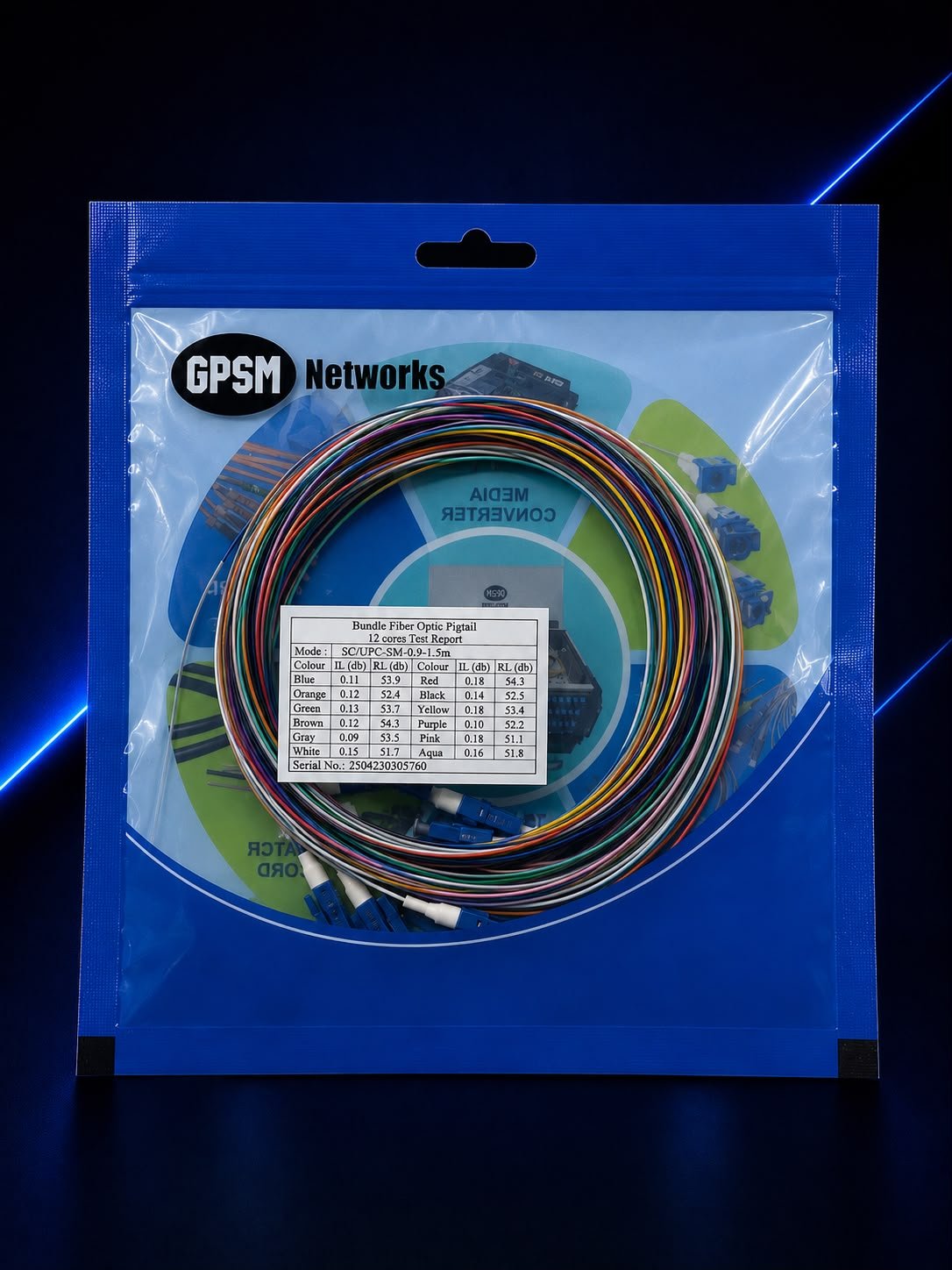

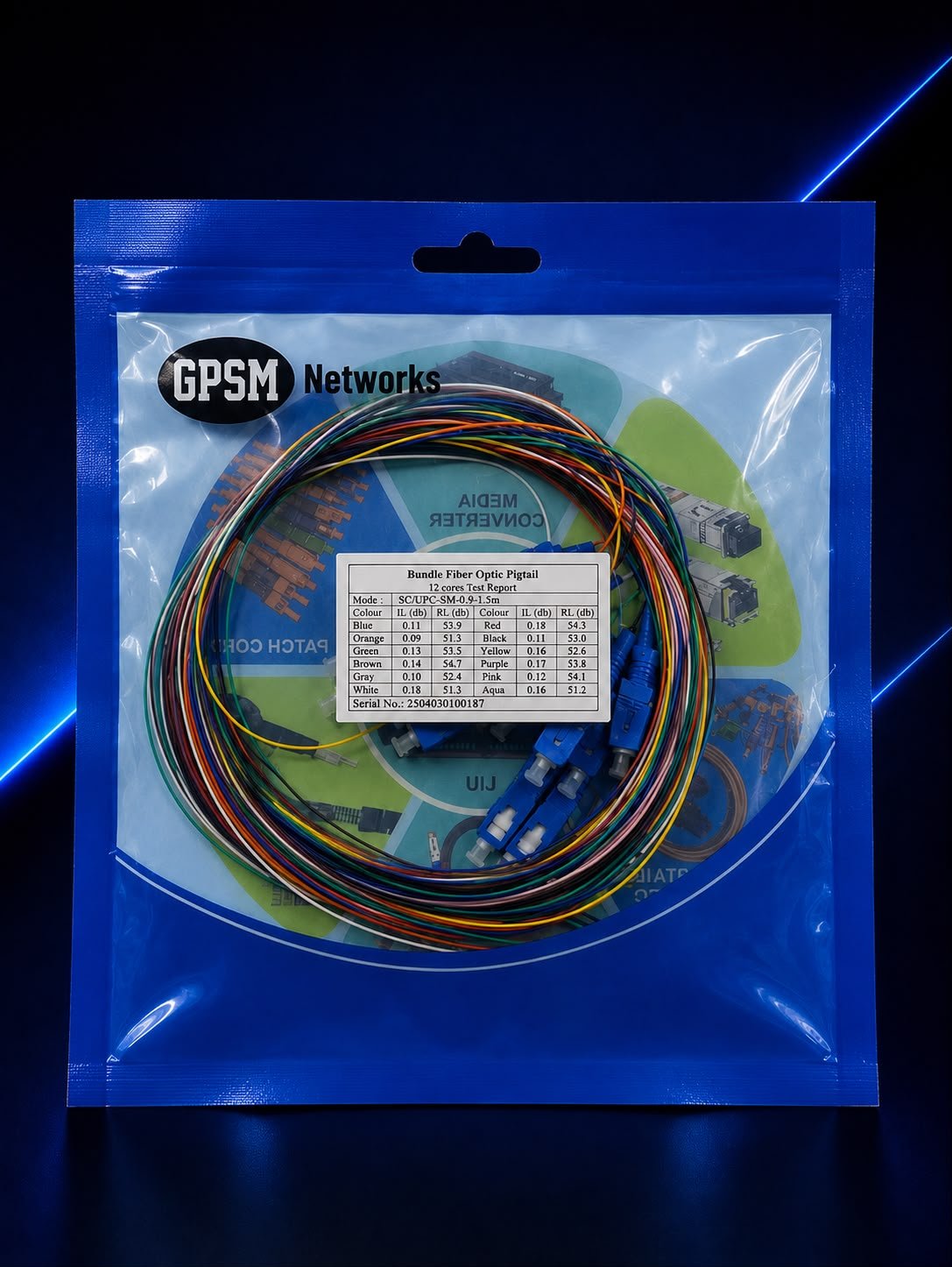

The Fiber Optic Pigtail is a high-quality passive optical component designed to provide a reliable termination point for fiber optic cables through fusion splicing. Manufactured using premium optical fiber and precision-polished connectors, it delivers low insertion loss, high return loss, and excellent transmission performance. Available in multiple connector types, fiber modes, and polishing options, fiber optic pigtails are widely used in FTTH, FTTx, telecom, data centers, CATV, and enterprise networking applications.

Key Features

• Available in SC, LC, FC, ST, and E2000 connector types
• Supports Single Mode (G.652D/G.657A1/A2) and Multimode (OM1/OM2/OM3/OM4) fibers
• Available with PC, UPC, and APC polishing options
• Low insertion loss and high return loss for superior optical performance
• Factory pre-terminated and 100% insertion loss (IL) and return loss (RL) tested
• Durable outer jacket with excellent flexibility and mechanical strength
• Ideal for fusion splicing and easy field installation

Technical Specifications

• Connector Types: SC, LC, FC, ST, E2000
• Fiber Type: Single Mode (G.652D/G.657A1/A2) / Multimode (OM1/OM2/OM3/OM4)
• Polish Type: PC / UPC / APC
• Fiber Diameter: 0.9mm (standard), optional 2.0mm or 3.0mm
• Standard Length: 1 Meter, 1.5 Meter, or customized
• Insertion Loss: ≤ 0.3 dB (Typical ≤ 0.2 dB)
• Return Loss: ≥ 50 dB (UPC), ≥ 60 dB (APC)
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
