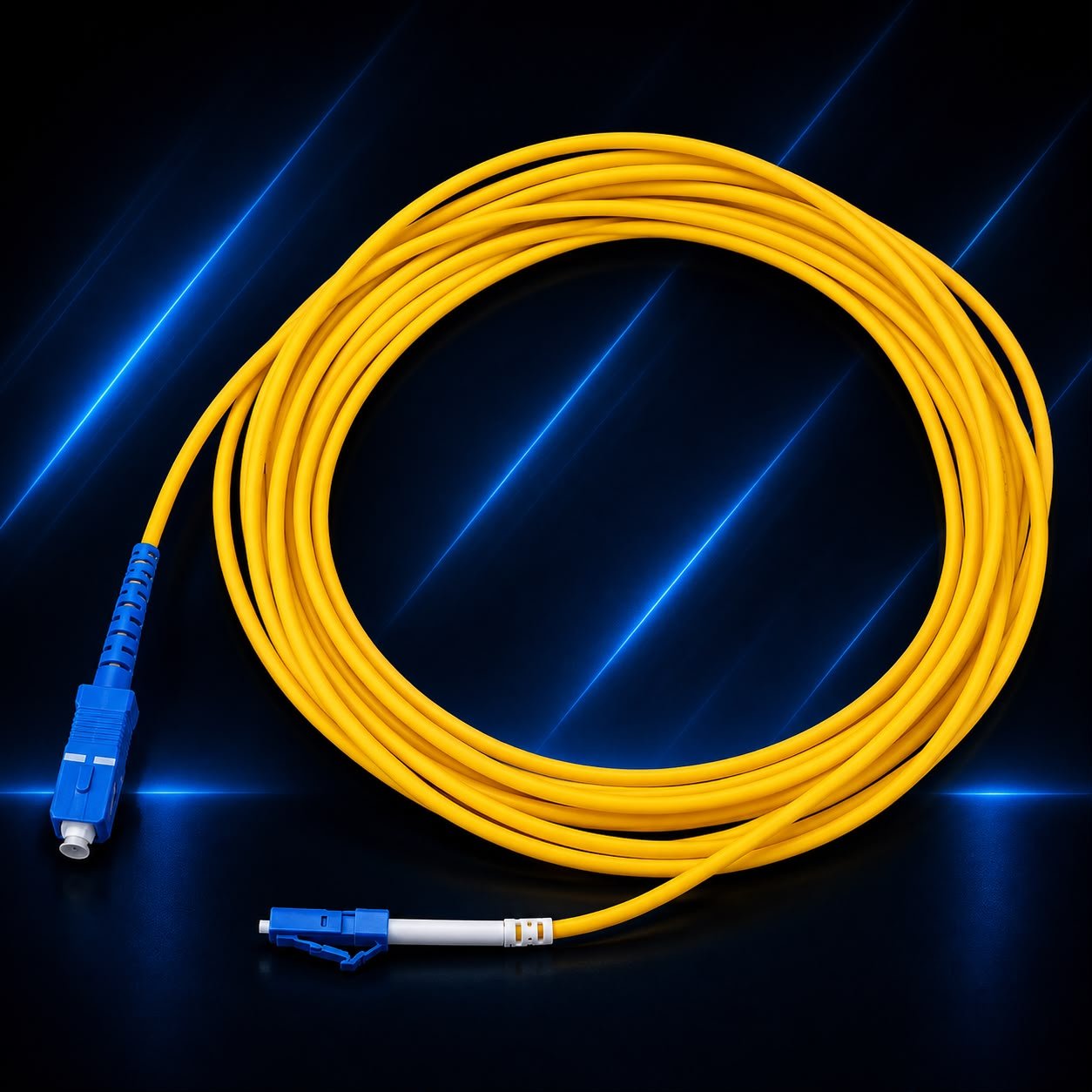

Simplex

Overview

The Fiber Optic Patch Cord is a high-quality passive optical cable designed to provide reliable and low-loss connectivity between optical networking devices. Manufactured using premium optical fiber and precision-polished connectors, it delivers excellent signal transmission with minimal insertion loss and high return loss. Available in a wide range of connector types, fiber modes, and cable configurations, it is ideal for FTTH, data centers, telecom, CATV, enterprise networks, and structured cabling applications.

Key Features

• Available with SC, LC, FC, ST, MT-RJ, and hybrid connector options
• Supports Single Mode (G.652D, G.657A1/A2, G.655) and Multimode (OM1/OM2/OM3/OM4) fibers
• Precision zirconia ceramic ferrules for low insertion loss and high return loss
• Metal-body ST and FC connectors for enhanced durability
• Manufactured using premium Corning® optical fiber
• Available in simplex, duplex, and armoured cable constructions with custom lengths
• Factory 100% tested to ensure superior optical performance and reliability

Technical Specifications

• Connector Types: SC, LC, FC, ST, MT-RJ, Hybrid
• Fiber Types: G.652D, G.657A1/A2, G.655, OM1, OM2, OM3, OM4
• Configuration: Simplex / Duplex / Armoured
• Polish Type: PC / UPC / APC
• Ferrule Material: Precision Zirconia Ceramic
• Standard Cable Lengths: 1m, 2m, 3m, 5m, 10m (Custom lengths available)
• Insertion Loss: ≤ 0.3 dB (Typical ≤ 0.2 dB)
• Return Loss: ≥ 50 dB (UPC), ≥ 60 dB (APC)
• Operating Temperature: -40°C to +85°C
